Aluminum 126mm Double Spring Shock Set (Red)

About this part

Hot Racing 126mm dual spring threaded shocks.

Features

• Double spring system
• Machined Delrin spring collars
• CNC machined 6061-T6 aluminum shock bodies, spring retainers, threaded spring collars, bottom seal retainers, and shock caps
• Threaded shock bodies
• Hard anodized aluminum bodies for smooth operation and great corrosion and wear resistance
• Teflon two hole pistons
• Red anodized spring retainers, threaded spring collars, and shock caps
• 1.1mm black dual springs
• 1.0mm chrome dual springs
• Fully assembled

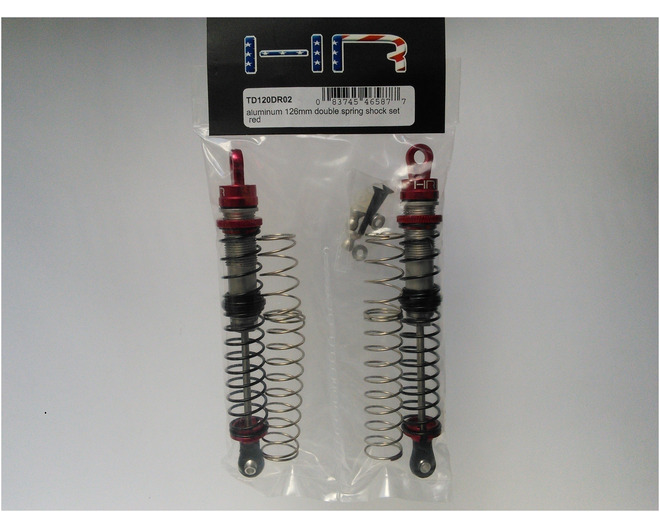

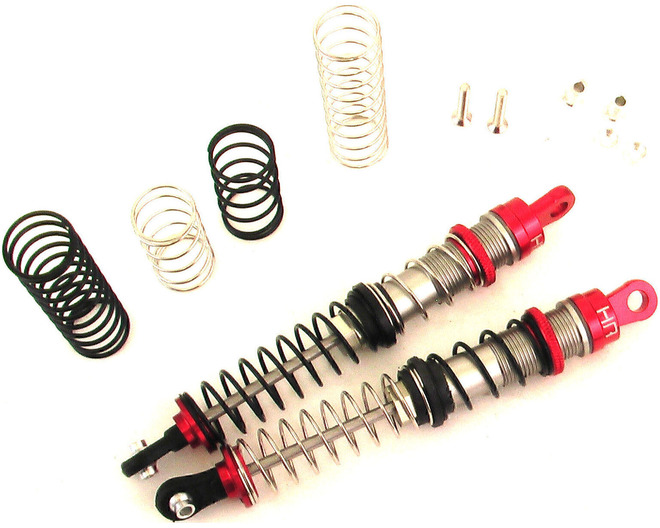

You will receive

• Two (2) fully assembled shocks with black main and tender springs
• Two (2) chrome tender springs
• Two (2) chrome main springs
• Two (2) aluminum upper shock cap bushings
• Two (2) aluminum countersunk washers
• Two (2) flat head cap screws

Specifications

• Extended mount-to-mount: 4.96 inch (126mm) - Compressed mount-to-mount: 3.30 inch (84mm) - Diameter of body: 1/2 inch (13mm)

Requirements

• Silicone shock oil

Comments

• Double spring system provides a rapid initial respond at the beginning when both tender springs and main spring are compressed together and deliver the desired firmer ending rate once the tender spring closes completely leaving only the main spring to deflec

Fits
