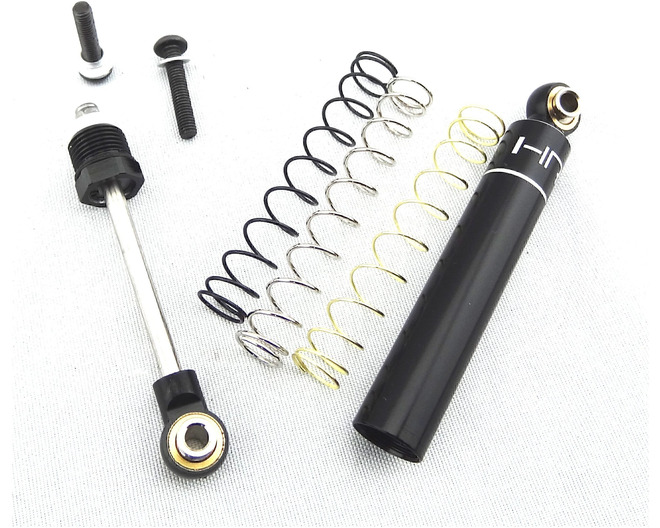

100mm Scale Aluminum Internal Spring Shocks (2)

About this part

Hot Racing scale aluminum internal spring damper shocks, designed with scale and rock crawling vehicles in mind

Features

• Internal spring shocks, with three included spring options, provide functionality, while maintaining a scale appearances
• Can be used with or without silicone shock oil
• CNC machined aluminum shock bodies, lower shock cap, and shock end
• 3mm stainless steel shock shafts
• Steel pivot balls with brass pivot cups
• 2-hole machined pistons

You will receive

• Two (2) shocks
• Three (3) spring options (one pre-installed)
• Hardware pack

Requirements

• Installation

Specifications

• Extended length (hole-to-hole): 100mm
• Travel: ~29mm
• Shaft diameter: 3mm
• Shock body diameter: 10mm
• Eyelets: for 3mm screws

Comments

• Caution: These shocks do not have bladders and will act as an emulsion-type shock when shock oil is used. Be mindful of that and leave enough free space in the shock to accommodate the oil displacement caused by the shock shaft during compression.
• See Hot Racing TD90Z01 for a 90mm shock version

Fits
