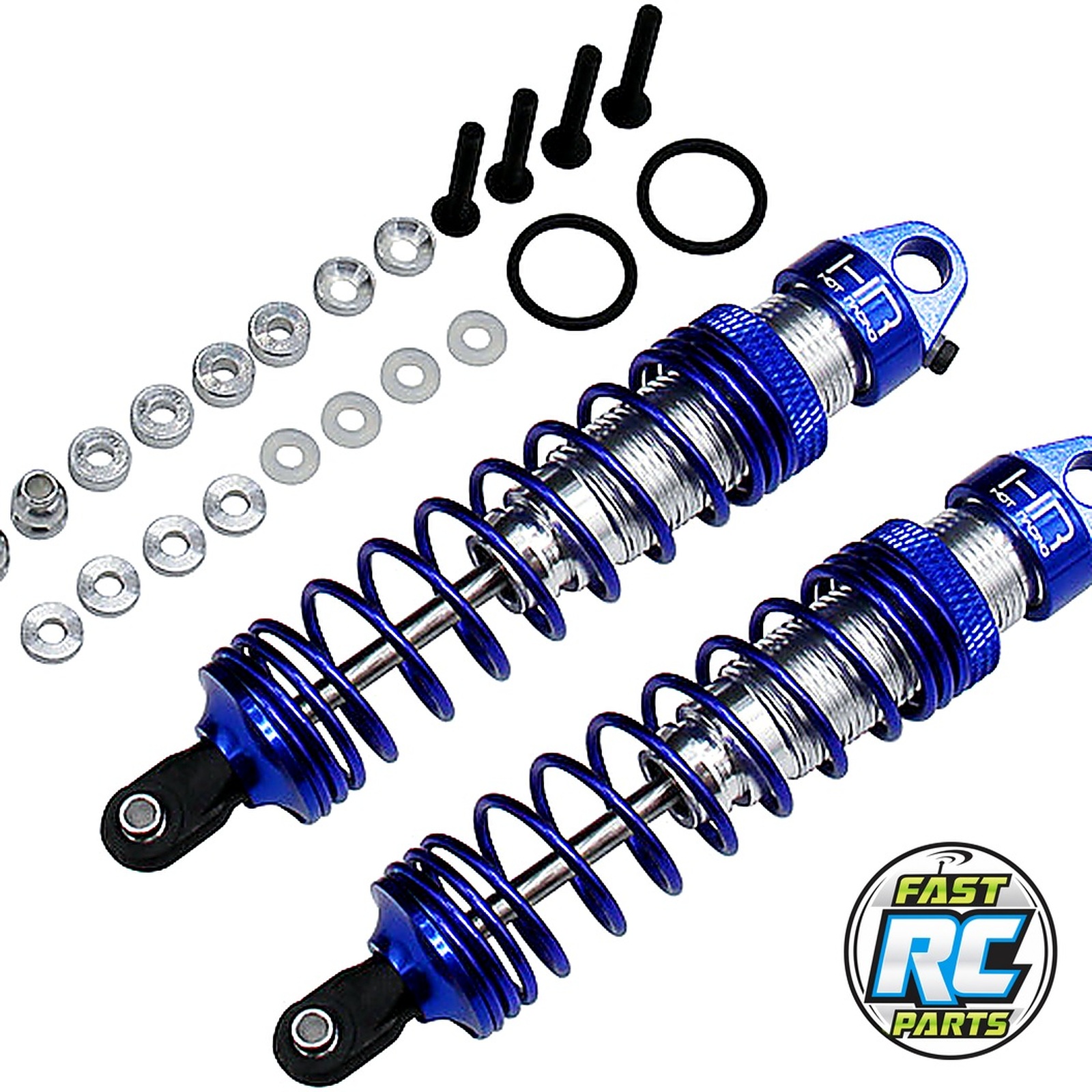

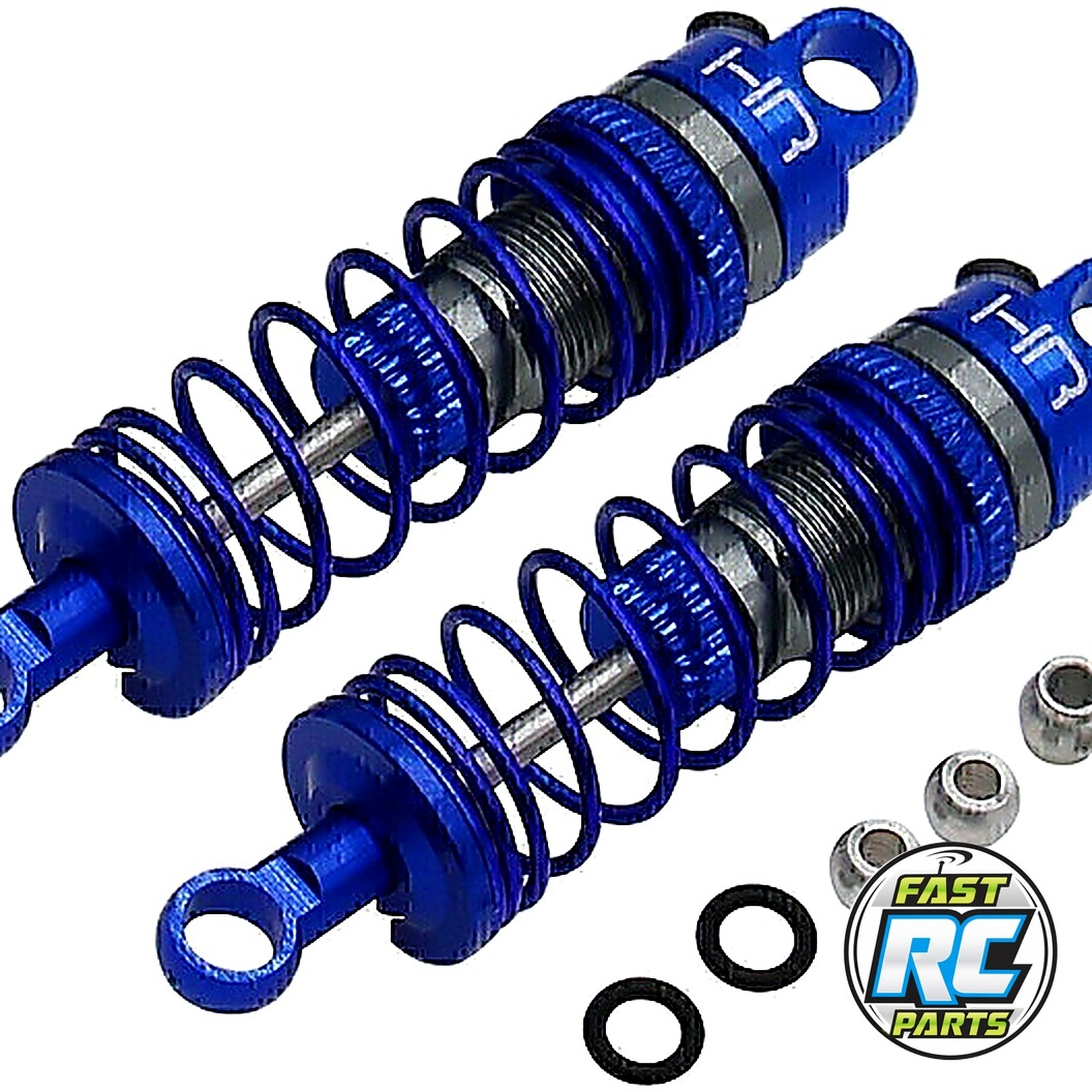

Aluminum 105mm Hd Big Bore Shocks (2)

About this part

Hot Racing 105mm big bore threaded body aluminum shocks for many TRA and other 1/10th scale off-road vehicles using 105mm shocks

Features

• CNC machined 6061-T6 billet aluminum shock bodies, collars, caps, and spring retainers - "Big Bore" threaded shock bodies
• CNC machined 11mm Delrin pistons
• 3.5mm stainless steel shock shafts
• Gunmetal and blue anodized aluminum components
• Vented shock caps with bladder seals for consistent rebound dampening
• Threaded shock collars with o-rings to prevent unwanted movement
• Composite plastic lower shock ends with aluminum balls
• Fully assembled, just add shock oil and bleed

You will receive

• Two (2) assembled shocks
• Two (2) M3x20mm flat head cap screws
• Two (2) M3x18mm button head cap screws
• Two (2) 3mm countersunk washers
• Two (2) 5.9 hollow balls
• Four (4) 1.5mm thick spacers
• Four (4) 3mm thick spacers

Requirements

• Silicone shock oil of modeler's choice and bleeding per the typical bladder shock bleeding procedure
• Best used with Team Associated shock Green Slime grease or shock o-ring grease when rebuilding lower seal
• Snap ring pliers when rebuilding lower seal

Specifications

• Extended length: 105mm
• Compressed length: 75mm
• Overall length: 115mm - diam
