90mm Aluminum Threaded Shocks

About this part

Hot Racing 90mm threaded aluminum shocks for the front of most 1/10 scale 2WD vehicles, including the Team Associated SC10 Threaded Racing Shock Set for SC10 but will work with most 1/10 off road truck.

Features

• Threaded shock bodies for easy, precision, and repeatable right height and pre-load adjustment
• CNC machined 6061-T6 aluminum bodies, caps, collars, and spring retainers
• Bladder style shock for easy and consistent building
• Hard anodized body for smooth action and wear resistance
• Two hole 10mm PTFE pistons
• Two spring sets

You will receive

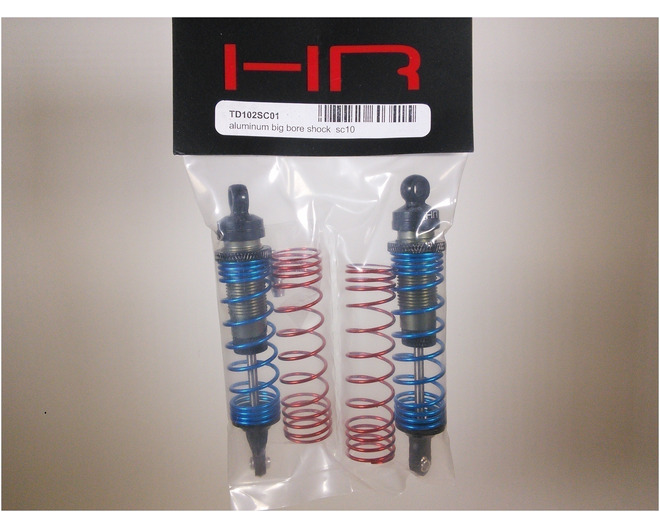

• Two (2) assembled shocks
• Two (2) blue springs
• Two (2) red springs- Two Shock Mounting Flanges

Specifications

• Length eye-to-eye: 90mm
• Diameter of body: 13mm
• Piston diameter: 10mm
• Blue stiff springs: 12 coil, 1.37mm wire 6.8lb rate
• Red soft springs: 12 Coil 1.09mm wire, 4.2lb rate
• Pivot ball hole diameter: for M3 or 4-40 screws

Requirements

• Silicon shock oil (30wt is usually a good starting point)
• Installation
• O-ring lube, such as Hot Racing SPL10G08, is optional, but effective at reducing o-ring stiction

Comments

• Replacement parts include, Hot Racing: bladders and o-rings (RTD1012B)
