Steel Spur Gear (50t 0.8 Mod)(Green) - TRA

About this part

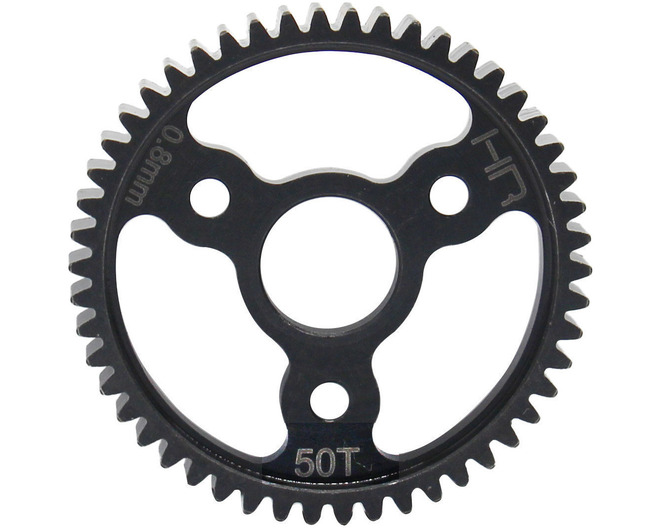

Hot Racing 50 tooth, 32 pitch (0.8 Mod) spur gear for the 1/10 TRA E-Revo, Rally VXL, Slash 4X4, Stampede 4X4 and Hot Racing ATF25R02 Gear adeptor for use on Arrma 4WD 3S and 4S .

Features

• CNC machined and lightened hardened steel construction
• Black oxide coating for durability and corrosion resistance
• Green anodized countersunk washers

You will receive

• 50 tooth 32 pitch (0.8mod) spur gear
• Three (3) mounting screws
• Three (3) Green anodized countersunk washers
• Three (3) washers (use as needed underneath countersunk washers to prevent screw ends from protruding too far through spur mounting plate)

Specifications

• Number of teeth: 50
• Gear pitch: 32 pitch (0.8 module)
• Mounting holes: 3
• Tooth face width: 6mm (0.24 inch)
• Internal diameter: ~11mm (~0.43 inch)

Requirements

• Bigger pinon gear
• Requires a slipper transmission. Will NOT work with vehicle equipped with a center gear differential. Use Hot Racing SSLF2 series gears for vehicles equipped with a center gear differential.

Comments

• This gear is designed to be a speedrun gear you will need a oversize pinnon gear. and it will cost your motor to run hot.

Fits
