55t Mod 0.8 Steel Spur Gear 1/8 infraction

About this part

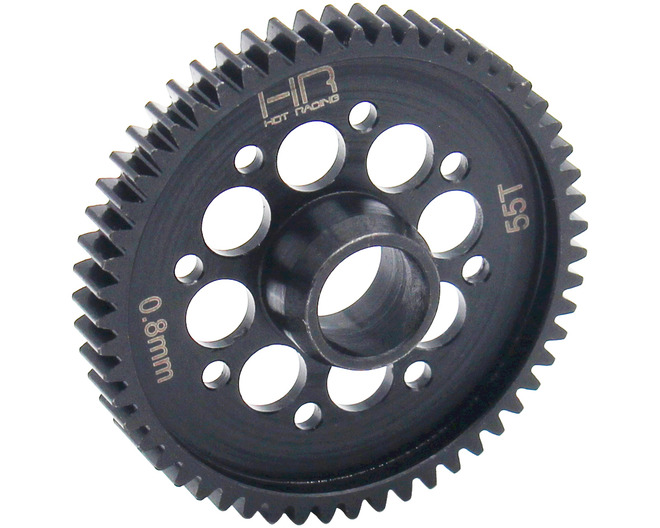

Hot Racing steel super duty Steel Spur Gear 55T 0.8Mod (32P) spur gear for 1/10 off road and 1/8 all road Arrma 4X4 vehicles. See comments below for specific vehicle fit information.

Features

• Rugged Steel 32 pitch (mod 0.8) for total reliability when using high power brushless systems
• CNC machined and lightened hardened steel construction
• Replaces factory plastic gear
• Black oxide coating for durability and corrosion resistance
• Can uses factory slipper pads 310994 or Hot Racing ATF15HN

You will receive

• One (1) 55T 0.8Mod (32 pitch) spur gear

Specifications

• Number of Teeth: 55
• Gear Pitch: 32 pitch 0.8Mod
• Tooth Face width: 0.24 inch (6 mm)

Requirements

• Stock plastic center gear bushing from Arrma ARA311112
• Use Arrma
• 310994 slipper pad or Hot Racing ATF15HN

Comments

• Upgrade for factory plastic ARA311112 55T, 32DP spur gear
• Known to fit the following Arrma vehicle part numbers. The vehicle part number can be found on Arrma's website, the literature that came with the vehicle, or on the vehicle box around the barcode. If a vehicle is marked below with the word "optional, " then the part may fit, but may require some modification.
• ARA4215V3 1/8 INFRACTION 4WD MEGA RESTO-MOD TRUCK RTR

Fits
