Revo 4WD Ssd Cv Drive Steel

About this part

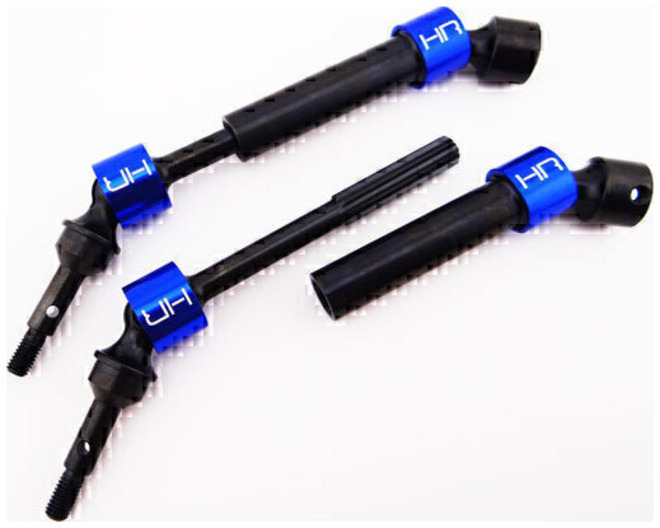

Hot Racing optional upgrade heavy duty splined star drive CVD axle kit for the front or rear of the NEW TRA 1/10th scale E-Revo, E-Maxx, Revo 3.3, T-Maxx 3.3, and Summit(56076-4). These shafts are compatible with vehicles that use the TRA 5451X axle shafts. Please confirm that the vehicle uses these shafts before ordering.

Features

• Heavy duty CNC machined #45 hardened carbon steel construction
• Replaces factory plastic front or rear drive axles
• Blue anodized aluminum pin capture rings with rubber o-rings to prevent movement
• Design eliminates CV pin setscrew
• Steel is black finished

You will receive

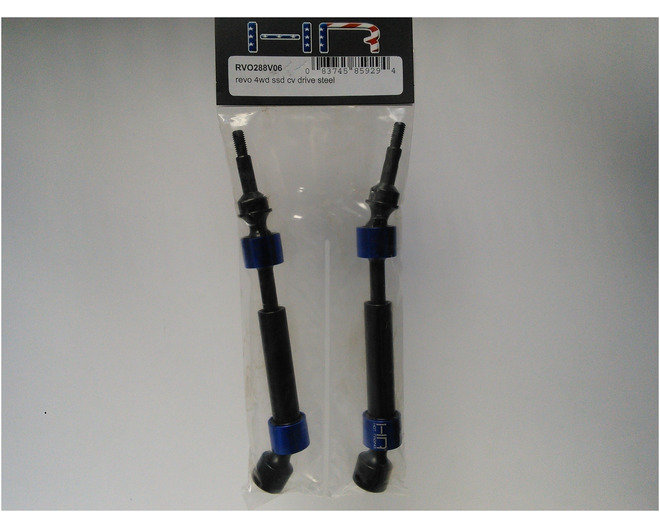

• Two (2) splined CVD shaft assemblies

Requirements

• Installation at rear drive assembly
• Recommended to maintain CV joint and shaft spline with grease
• Recommended to use a removable-type locking adhesive on screws threading into metal

Specifications

• Approximate collapsed length: 151mm (5.9 inch)
• Approximate full extension resulting in zero shaft engagement: 199mm (7.8 inch)
• Pins: 15x2.5mm

Comments

• Replaces factory plastic TRA 5451X axle driveshaft assembly
• Replacement/spare drive hubs are Hot Racing RCV15DH
• Replacement/spare slider shafts are Hot Racing RCV15MF86
• Replacement/spare CV reb

Fits

Replaces stock part
