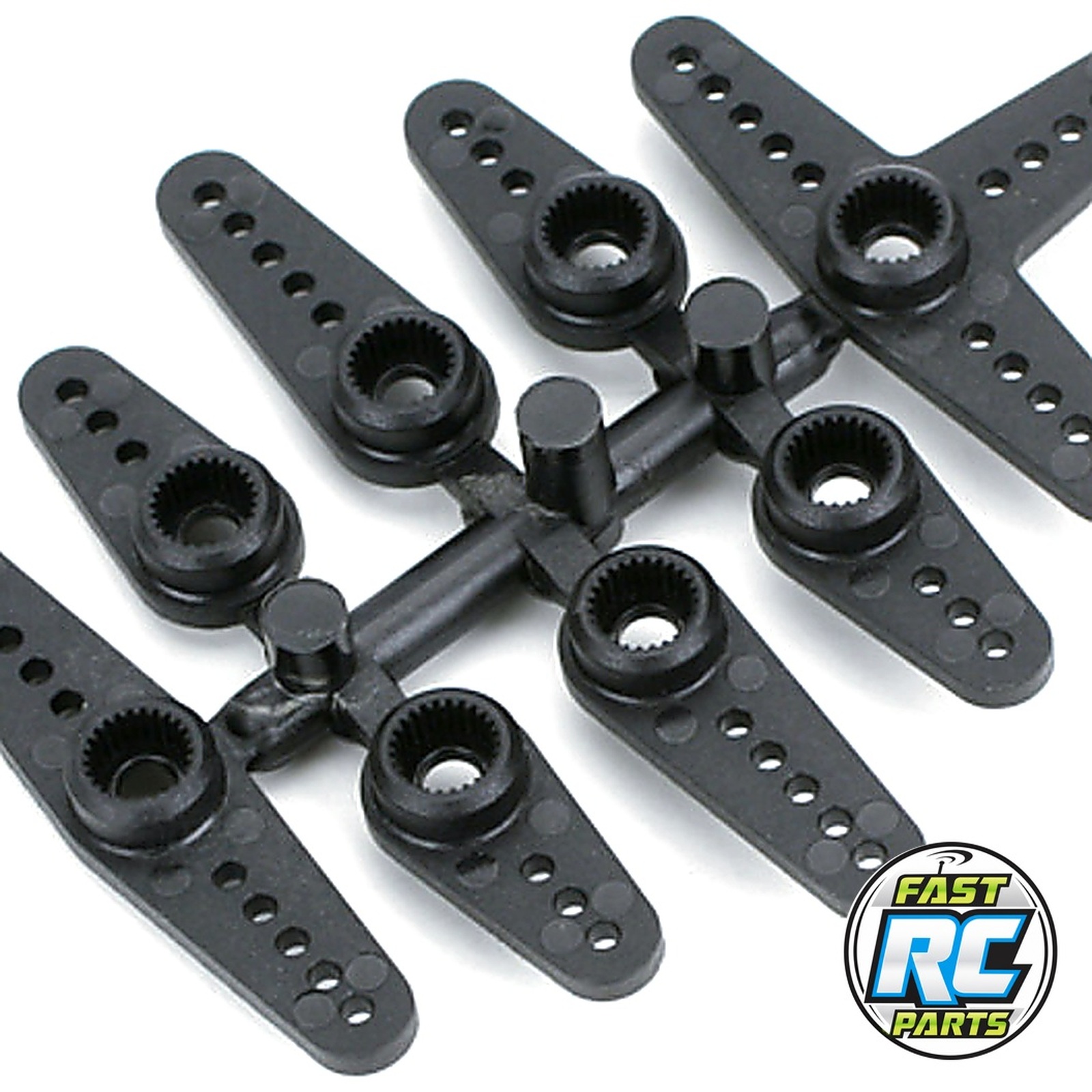

Super Strength Long Servo Arm: FUT

About this part

• For those requiring a really heavy duty servo arm, the Dubro
• "Super Strength" arms will fit the bill.

Features

• Black composite plastic servo arms.

You will receive

• 2 each of short, medium and long servo arms the extend in
• One direction from the servo center. Also has two long
• Arms the extend in two opposing directions from the servo center.

Specifications

• Short : Mounting holes at: 12, 15 and 18mm. Total length-23mm.
• Medium: Mounting holes at: 15, 19, 22 and 25mm. Total length-30mm.
• Long : Mounting holes at: 23, 25, 28 and 32mm. Total length-36mm.
• Dual : Mounting holes at: 15, 19, 23 and 26mm. Total length-28mm.
• All measurements are from the center of the arm.
• The dual is only from one side to center. Actual overall length- 56mm.
• Fits the FUTABA servos with splined output shafts.
