Aluminum Black Internal Spring Air Shocks 125mm

About this part

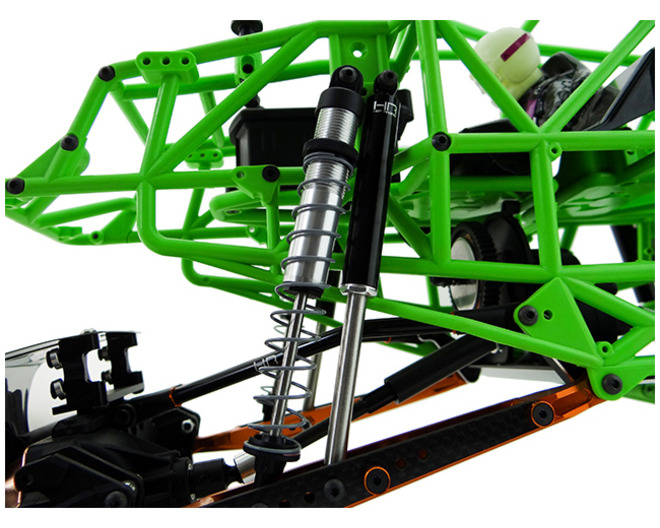

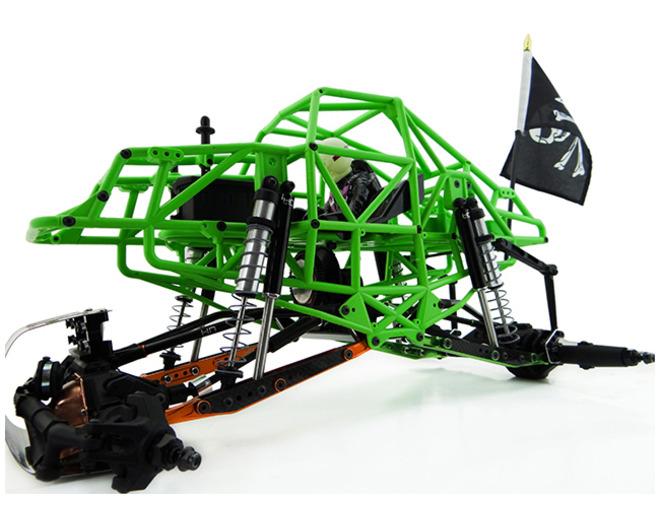

Hot Racing 125mm internal spring damper shock set for Axial or other custom Rock Crawler projects

Features

• CNC machined aluminum shock bodies, black anodized
• CNC machined aluminum lower shock cap with shock shaft guide, Silver anodized
• Precision machined 6mm stainless steel shock shaft for durability
• Delrin lower shaft seal
• Air damping
• Internal springs with Two rates included: Black (Stiff), Silver (Med)
• All aluminum is anodized for durability, corrosion resistance, and great looks

You will receive

• Two (2) assembled shocks
• Two (2) black (Stiff) springs
• Two (2) silver (Med) springs
• Four(4) 4.8mm ball mounts
• Four (4) 3 x 12mm Cap head screws
• Eight (8) 6mm od o-rings
• Two (2) M3 lock nuts

Requirements

• Installation on vehicle
• Recommended to use SPL10G08 increase smoothness

Specifications

• Extended center to center length: 125mm (4.92 inch)
• Compressed center to center length: 85mm (3.35 inch)
• Overall length: 133mm (5.2 inch)
• Body diameter: 11mm (0.43 inch)
• Shaft diameter: 6mm (0.24 inch)
