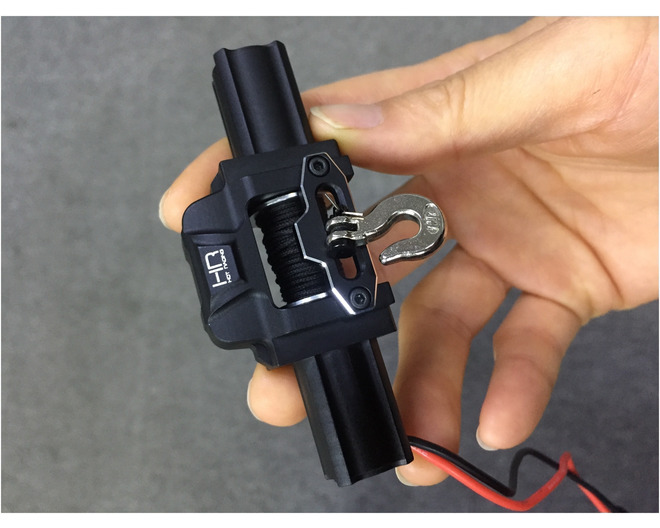

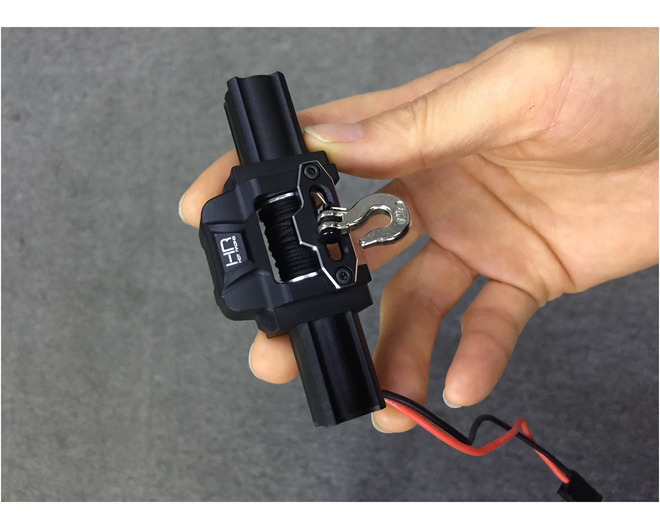

Manual switch 1:10 Dual Motor Power Winch

About this part

Hot Racing manual switch dual motor, high torque, winch for superior scale looks and power

Features

• High torque dual motor and gearbox reduction design
• Full CNC machined billet aluminum case, anodized black
• CNC machined aluminum fairlead
• ACC80908, die cast winch hook, Plated silver
• Pre-wound 3 foot synthetic winch rope/line
• Low RPM, low gear ratio
• Aluminum winch mounting plate
• Receiver connection
• Fwd/Off/Rev switch

You will receive

• One (1) dual motor winch with fairlead and hook
• One (1) aluminum mounting plate
• One (1) control switch and lead wire
• Hardware

Specifications

• Supply voltage: 6V to 12V (compatible with 2s or 3s LiPo, among other sources)
• Current draw: 300mA
• Internal gear reduction: 346:1
• Drum speed: 80RPM
• Rope/Line length: 3ft/0.9m
• Winch Mounting: 4XM2 on 24x17mm rectangle
• Plate Mounting: 31x17mm rectangle, 33x9mm rectangle

Requirements

• Light application of medium threadlock (blue threadlocking compound) on mounting screws
