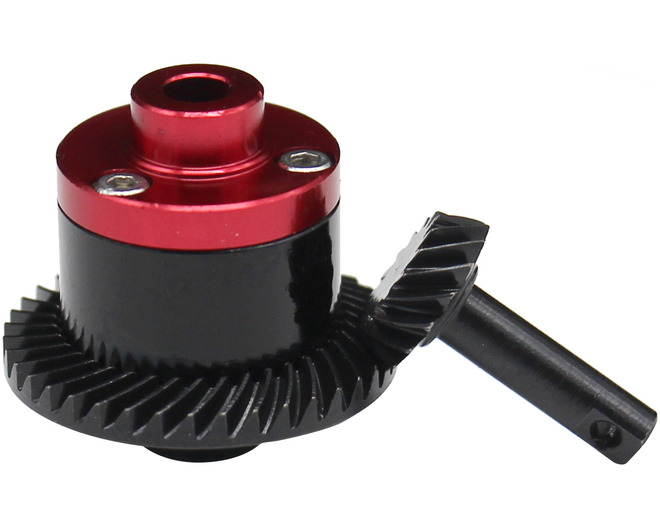

Steel Helical Spiral Gear Set w/ Aluminum Cover Plate - Tra 1/16

About this part

Hot Racing steel helical spiral differential gear set for TRA 1/16 4X4 vehicles, including the 1/16 E-Revo, 1/16 Slash 4X4, and 1/16 Summit. This set is compatible with the front or rear differentials.

Features

• CNC machined aluminum and hardened high carbon steel construction
• Aluminum carrier cover plate is anodized red
• Precision machined helical spiral cut gears offer inherently greater
• Strength and smooth operation than the factory bevel cut gears

You will receive

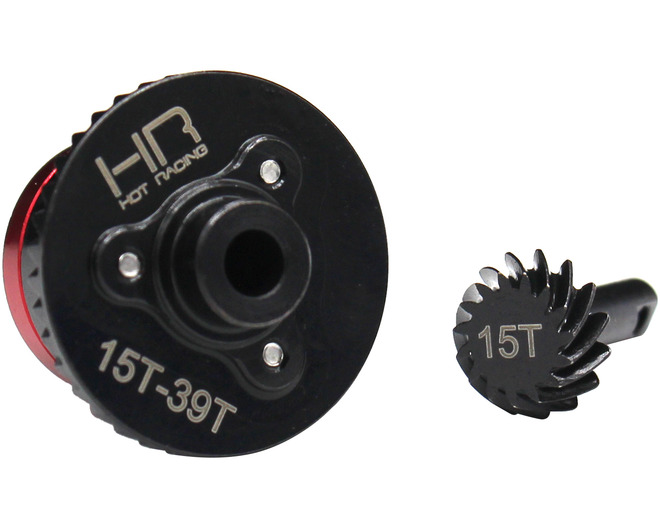

• One (1) steel 39T ring gear
• One (1) steel 15T pinion gear
• One (1) aluminum carrier
• One (1) aluminum carrier cover plate

Requirements

• Two sets per vehicle
• Reuses TRA 7082 internal spider and carrier gears, as well as the output shaft seal and outdrives from the original differential
• Installation may require shimming for proper gear mesh. The gears should run freely without too much play and without binding. (If shimming are needed use Hot Racing W4X Shim)
• Use removable thread lock (blue threadlocking compound) on carrier screws
• Differential grease (Spl10G02)

Specifications

• Carrier width: ~23mm
• Carrier bearing boss diameter: 8mm
• Pinion length: ~19.5mm

Comments

• Does not include inner differential gears.
• Replaces TRA 7

Fits

Replaces stock part
