Secure Lock Front Bulkhead 1/16 TRA

About this part

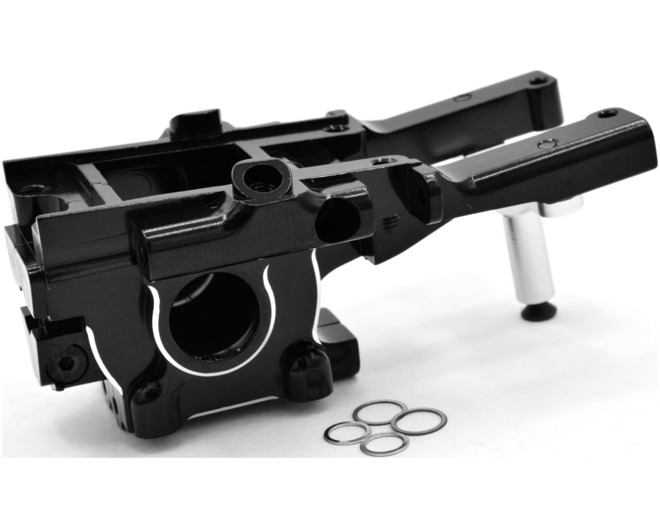

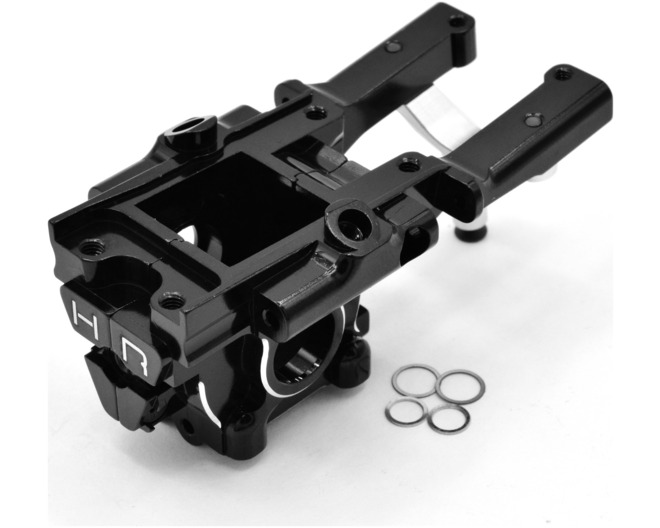

Hot Racing optional aluminum front bulkhead for the 1/16th scale TRA E-Revo, Summit, Slash VXL, and Rally

Features

• Robust CNC machined 6061 aluminum
• Anodized black with machined chamfered edges
• Added fastener points to stiffen the bulkhead and provide secure positioning of gear mesh
• Stiffens and strengthens front end
• Replaces the stock plastic bulkhead for increased durability

You will receive

• Left and right front bulkhead halves
• One (1) servo saver post
• Hardware pack with shims for pinion depth setting, or to use where needed

Requirements

• Installation
• Removable (blue) thread lock for screws threading into aluminum
• Shimming the differential correctly is an important step and this is the next stage of building the perfect gearbox. Two 0.2 shims are included for this purpose, if you need more you can use order Hot-Racing part number W8X.

Comments

• Replaces TRA plastic 7030X front L & R bulkhead halves and steering servo saver post from 7043
• Front bulkhead: VXS12X01
• Rear bulkhead: VXS13X01
