Clip-On Motor Heat Sink W/ Aluminum Base Fan(Blue) TRX272R

About this part

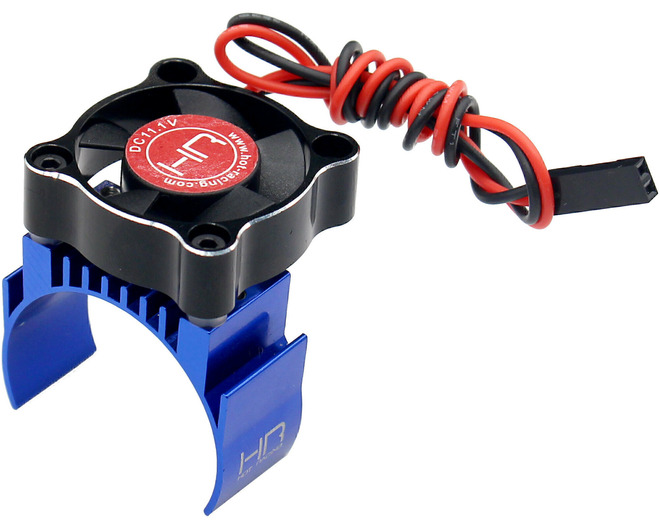

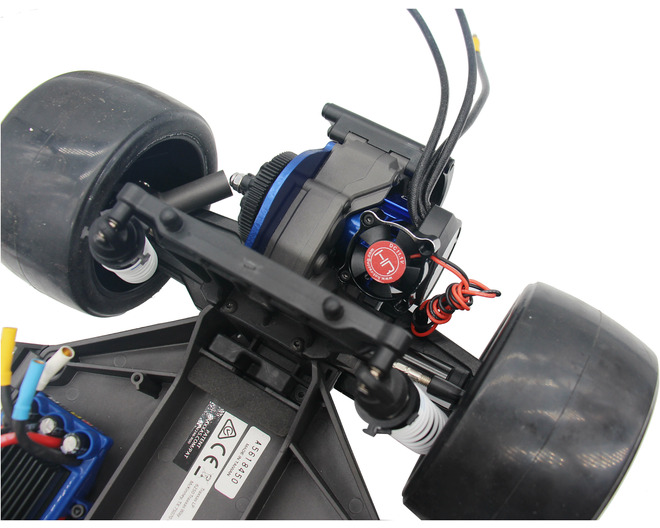

Hot Racing universal clip on motor heat sink and fan for use on 540 and 550 size motors. Design to fit TRA Pro Series Magnum 272R 2WD Transmission.

Features

• Keeps the motor running cooler
• Aluminum construction even the fan base.
• Clip on heat sink attaches to 540 and 550 size motors with a 36mm can diameter
• One-piece heat sink clip provides a sure and LCG fit.
• Blue and black anodized
• Laser etched Hot Racing insignia

You will receive

• One (1) heat sink with aluminum cooling fan

Requirements

• Installation
• Some units may require assembly (1.5mm and 2mm hex wrench required)
• Electrical hook up with 7.2-11.1V MAX DC power source
• Plug requires soldering or connection to a receiver port plug

Specifications

• Overall height: 39mm (1.54 inch)
• Fan size: 30x30x7.5mm
• Fan mounting hole pattern: 24mm square
• Input voltage: DC 7.2-11.1V MAX

Comments

• Replacement 30x30x7.5mm cooling fan is Hot Racing

Fits
