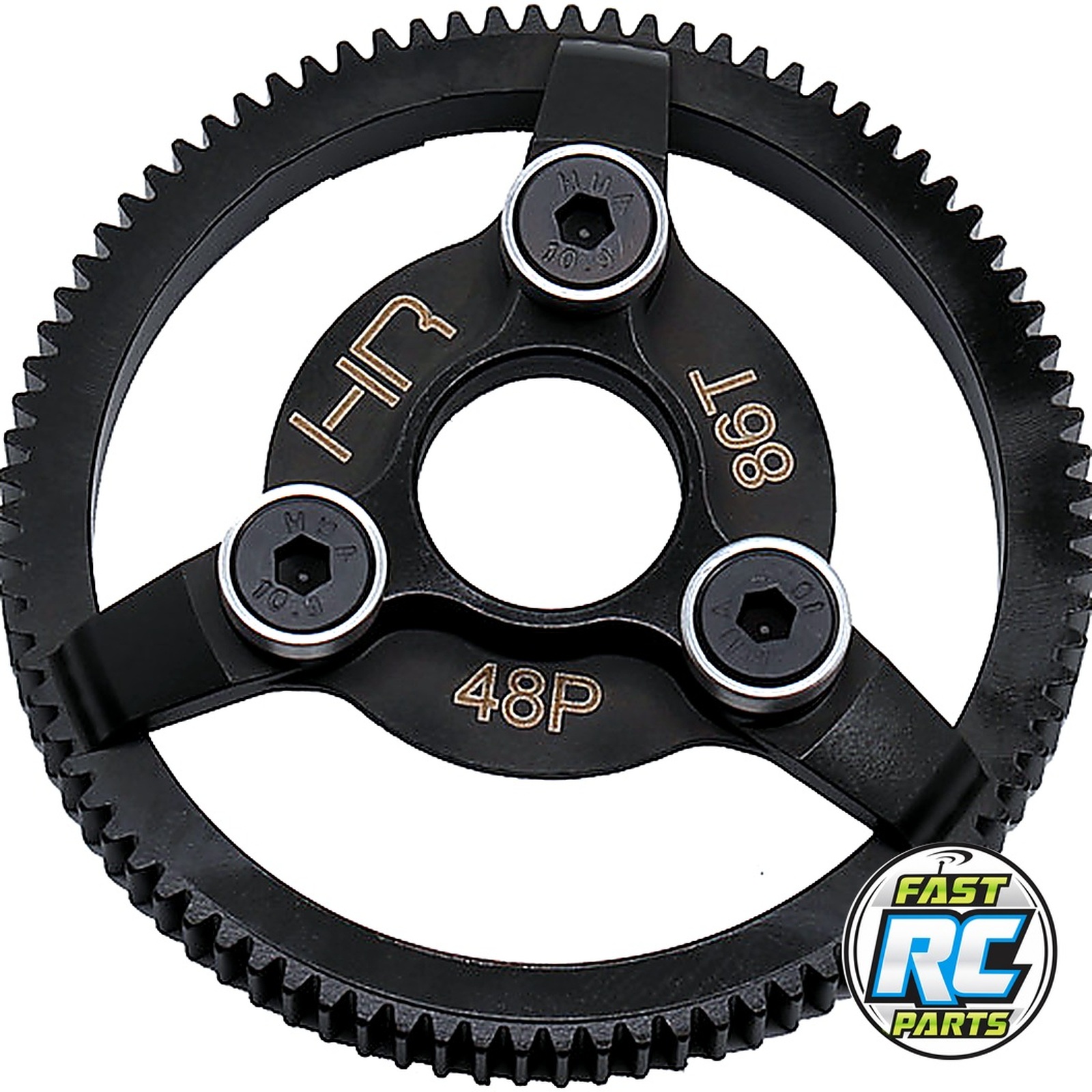

Hardened Steel Spur Gear (86t 48p)(Silver) - TRA

About this part

Hot Racing light weight hardened steel 86 tooth, 48 pitch spur gear for the TRA Bandit, Rustler, 2WD Slash, and 2WD Stampede vehicles

Features

• CNC machined and lightened hardened steel construction
• Replaces stock nylon spur gear
• Black oxide coated gear for durability and corrosion resistance
• Silver anodized countersunk aluminum washers
• High strength hardware

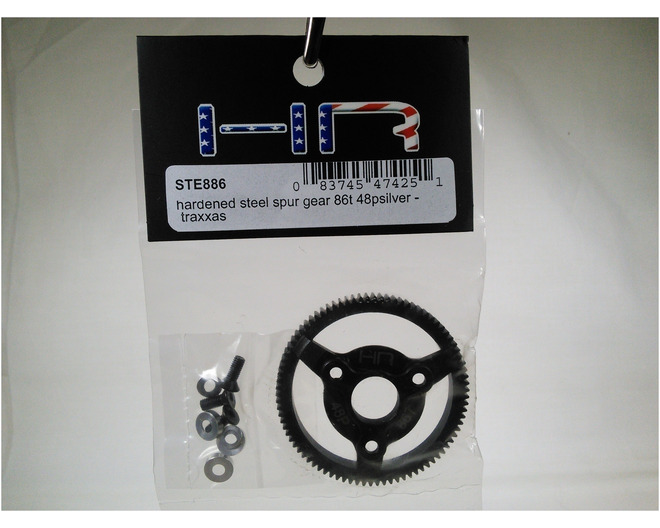

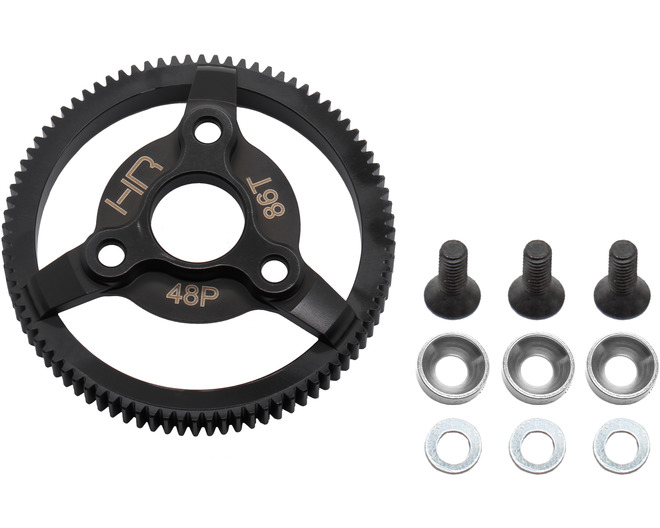

You will receive

• One (1) 86 tooth 48 pitch spur gear
• Three (3) mounting screws
• Three (3) silver anodized countersunk washers
• Three (3) washers (use as needed underneath countersunk washers to prevent screw ends from protruding too far through spur mounting plate)

Specifications

• Number of Teeth: 86
• Gear Pitch: 48 pitch
• Mounting Holes: 3
• Tooth Face width: ~5mm

Comments

• Consider using Hot Racing motor lock plate TE18L06 for secure motor mounting
• Motor should no way exceed 180F (over 160F is not recommended). ESC should not exceed 160F. Excessive temperatures will shorten the life of the motor and ESC.

Fits
