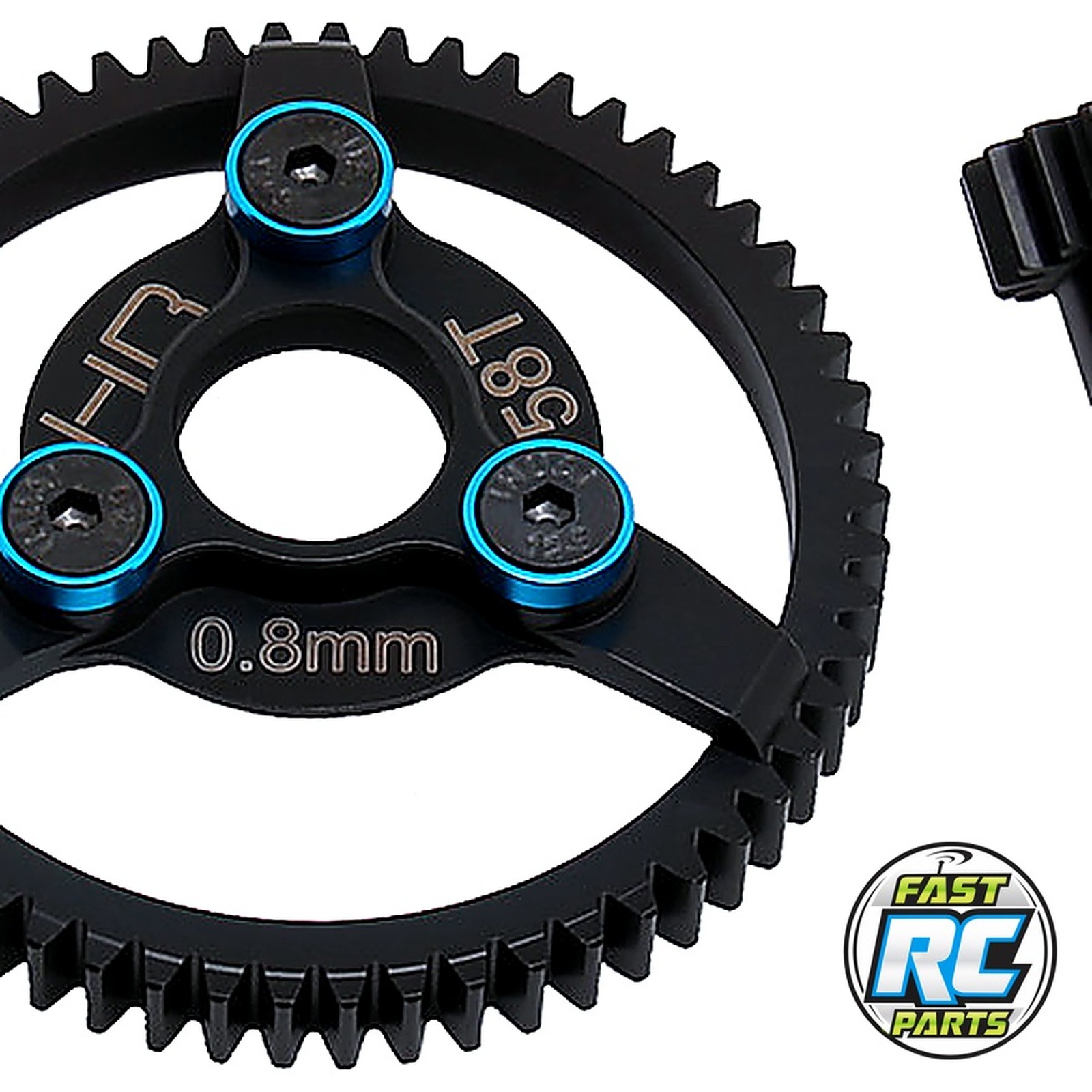

Steel Pinion and Spur Gear Set (18t/58t 32p)(Blue) - TRA

About this part

Hot Racing light weight hardened steel 18T/58T 32 pitch pinion and spur gear set for the TRA Bandit, Rustler, 2WD Slash, and 2WD Stampede

Features

• CNC machined and lightened hardened steel construction
• Replaces stock nylon spur gear
• Rugged 0.8 Module/32pitch teeth for total reliability on brushless power
• Aluminum pinion sleeve to allow for either 1/8 inch or 5mm motor shafts
• Black oxide coated gear for durability and corrosion resistance
• Blue anodized countersunk aluminum washers
• High strength hardware

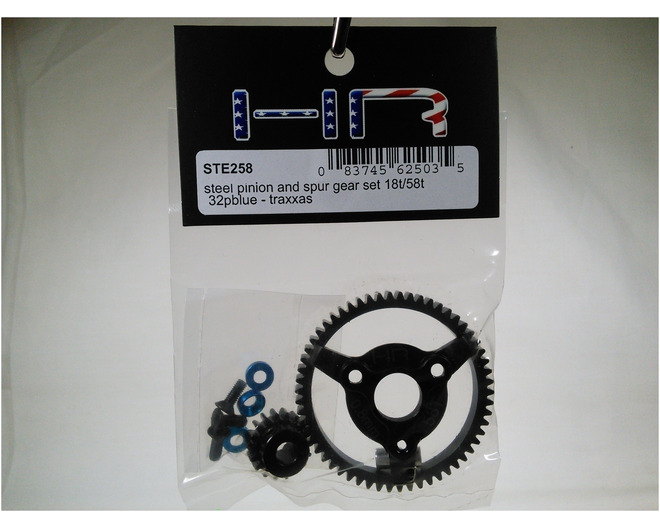

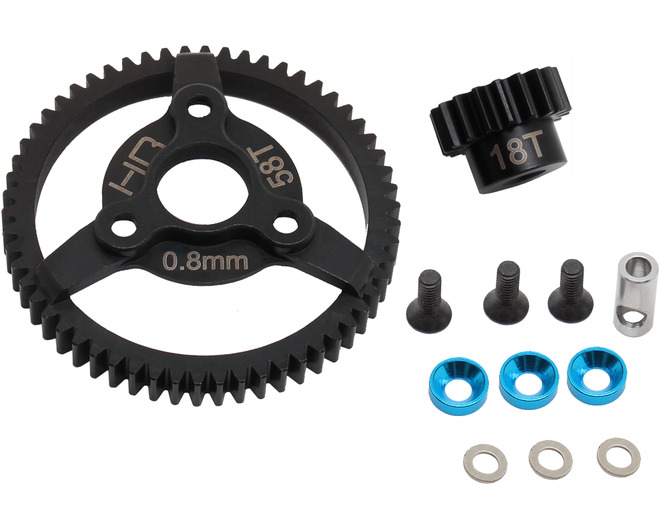

You will receive

• One (1) 18 tooth 32 pitch (0.8 Mod) pinion gear
• One (1) 58 tooth 32 pitch (0.8 Mod) spur gear
• Three (3) mounting screws
• Three (3) blue anodized countersunk washers
• One (1) pinion adapter sleeve
• Three (3) washers (use as needed underneath countersunk washers to prevent screw ends from protruding too far through spur backing plate)

Specifications

• Number of Teeth: 18T/58T
• Gear Pitch: 32 pitch (0.8 module)
• Mounting Holes: 3
• Tooth Face width: ~5mm

Comments

• Consider using Hot Racing motor lock plate TE18L06 for secure motor mounting
• Motor should no way exceed 180F. ESC should not exceed 160F. Excessive temperatures will shorten the life of the motor and ESC.

Fits
