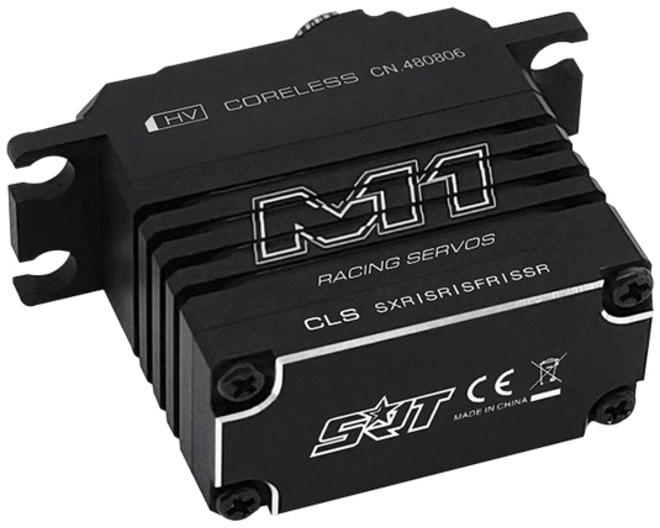

SRT M11 1/12 Pancar HV Coreless Servo

About this part

Special 1/12 pancar servo - Supporting SXR, SFR, SR, SSR multiple ultra high speed modes - Incredible efficiency and low power consumption - 2 sec Dead Band - 1-Year Limited Warranty Application : 1/12 Pancar

Specifications

• Type: Digital Bearing: Dual Motor Type: Coreless Gear Type: Metal Gear Material: Titanium & Steel control system: pulse width control working frequence: 1520s / 333hz operating voltage: dc6.0-8.4v operating temperature range: -10 to + 60 degree operating speed (6.0v): 0.07 sec/60 degrees at no load operating speed (7.4v): 0.065 sec/60 degrees at no load operating speed (8.4v): 0.055 sec/60 degrees at no load stall torque (6.0v): 7.0kg. cm (97.2 oz/in) stall torque (7.4v): 8.0kg. cm (111.1 oz/in) stall torque (8.4v): 9.0kg. cm (125.0 oz/in) potentiometer drive: direct drive

Dimensions

• 28.5x13.4x29.0 mm /1.12x0.53x1.14 in weight: 28.0g (1.0 oz) connector wire length: jr 170 mm
