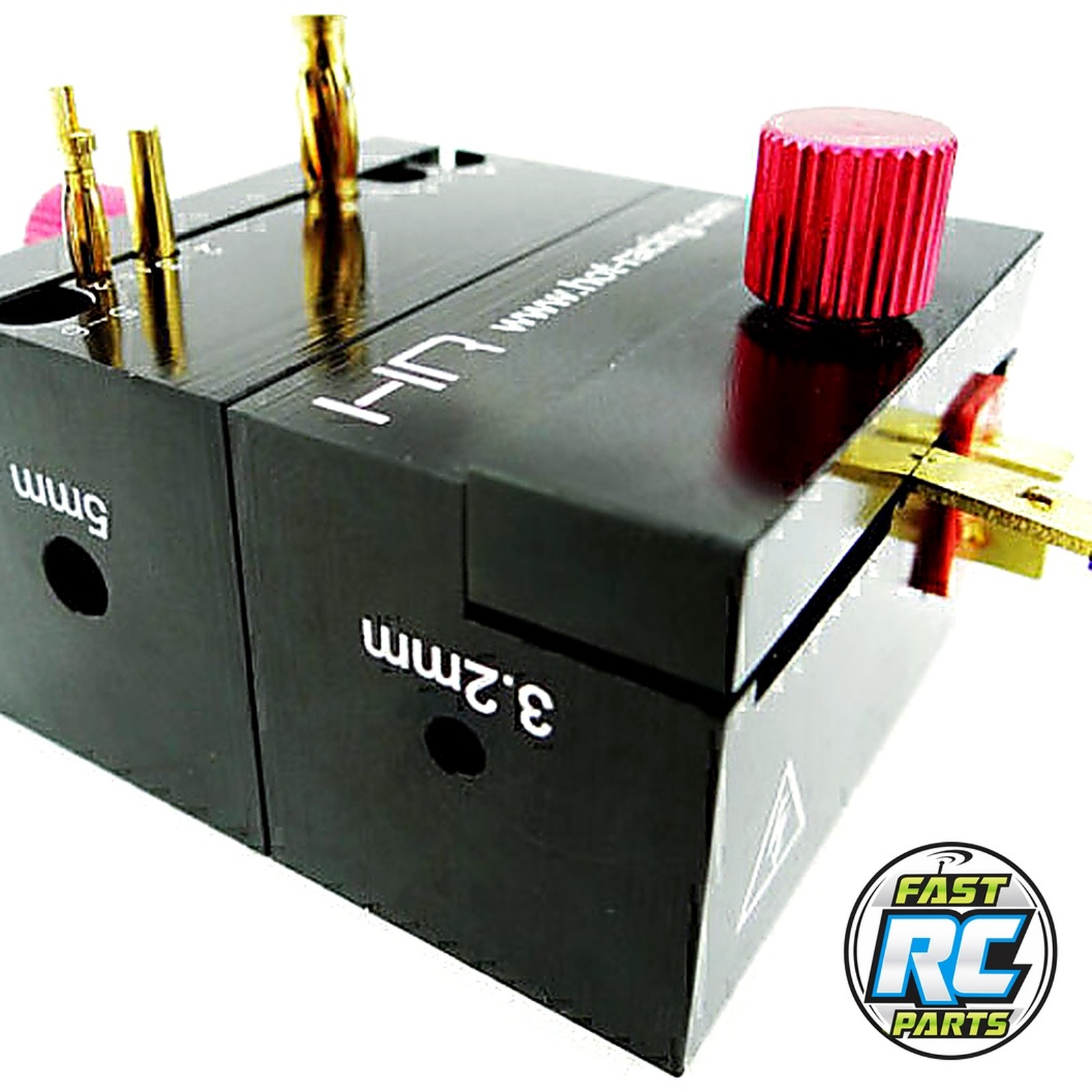

Pro Connector Soldering Jig

About this part

This is Hot Racing RC connector soldering Clamp jig

Features

• Ideal for soldering and all types RC connector This jig quickly and securely clamps, holds, and releases these connectors for your soldering tasks.
• This Jig clamp holds the most RC connectors XT60 T-plug style connector TRA connector

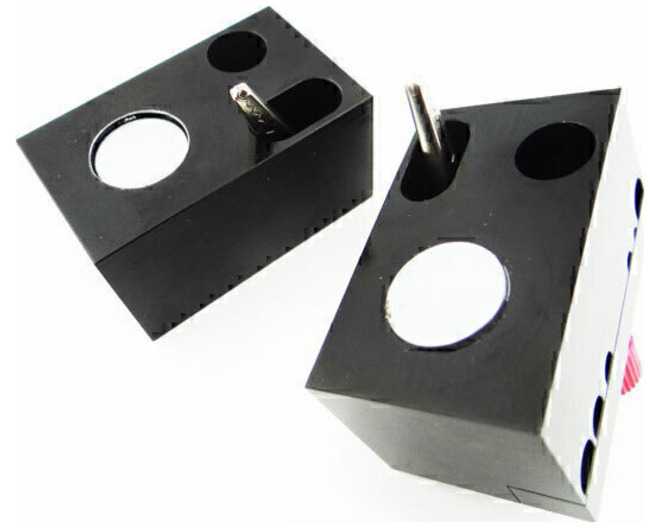

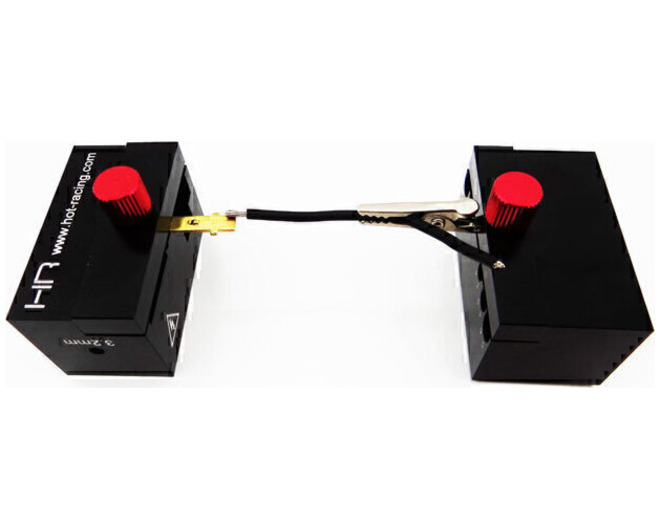

• EC-2 to EC-5 Micro 2pin to 4pin connectors Bullet connectors from 2 to 6.5 mm Magnetic two piece design with alligator clips and solder storage Two alligator clips style holding clamps for wire.
• Wide Aluminum base for added stability Can be use as motor holder fit both 5mm and 1/8 motor shaft.

You will receive

• One Hot Racing RC connector soldering Clamp jig with alligator clips and solder storage

Specifications

• .

Note

• Soldering tip :
• 1) soldering iron is must be very HOT! 2) Tin the wires and the connector pins with 60/40 electrical solder 3) Now place the wire and connector pin together with the help of a very hot soldering tip the solder will melts
• 4) Then remove the soldering tip from the solder join, and let it cool done
• Warning
• The most dangerous is to connect positive and negative wires together creating a short circuit.
• 1) One of the wires must be properly isolated at all times.
• 2)
