Complete Steel Gear Transmission Gearbox - AX10 SCX10

About this part

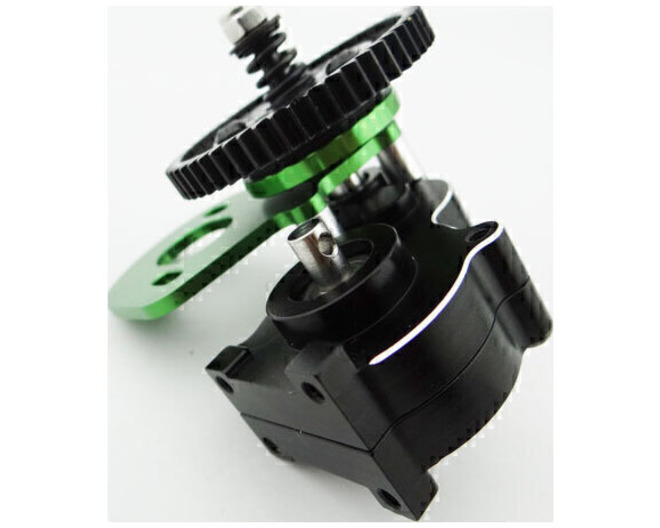

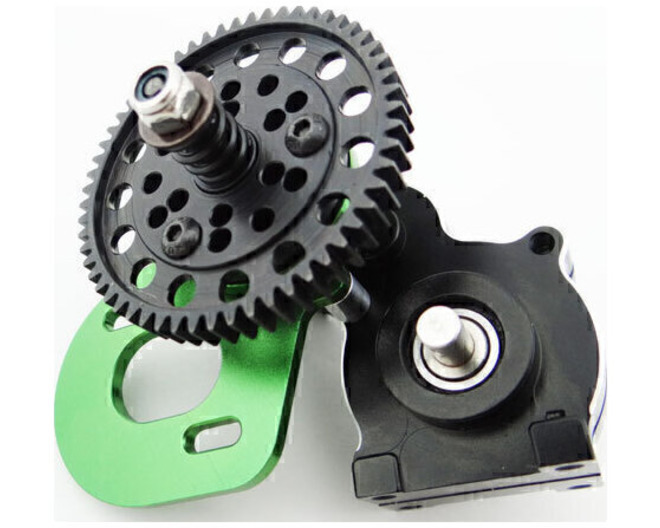

Hot Racing heavy duty complete full metal gear locked center main gearbox transmission with heavy duty 32 pitch, 57 tooth spur gear for the Axial AX10, SCX-10, Honcho, J33P, Dingo, and similar vehicles.

Features

• Hardened steel spur gear and internal gears
• Full sealed ball bearings
• Locked output gear
• Billet machined aluminum transmission case and motor mount
• Transmission case is anodized black with secondary-processed machined beveled edges
• Motor mount plate and gear hub are anodized green
• Super duty adjustable metallic-pad slipper system
• Heavy duty 32 pitch 57 tooth steel main spur gear
• Assembled and ready to install
• Compatible with Axial AX80078 stock gear cover and Hot Racing SCP32X01 aluminum cover (see requirements below)
• Uses stock bearing sizes for easy replacement, if needed

You will receive

• One (1) complete transmission gearbox with spur gear

Requirements

• Must use with 0.8 Module (32 pitch) pinion Gear
• Simple hand tools
• Installation
• Recommended to inspect all hardware prior to use and use a removable locking adhesive on screws threading into metal
• For Axial AX80078 gear cover or Hot Racing SCP32X01 aluminum gear cover, Axial backplate AX80078 is required. Backplate cente

Fits
