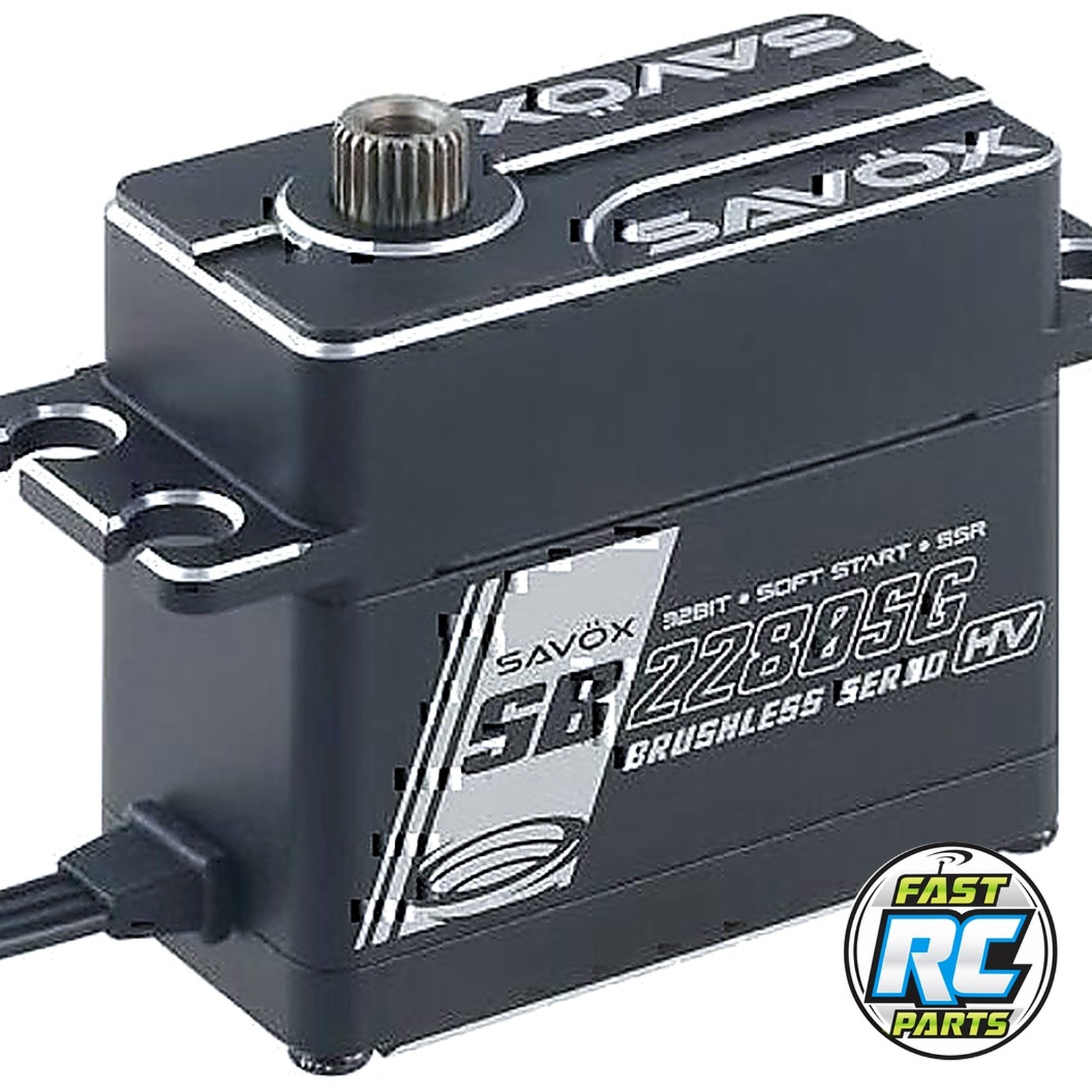

High Voltage brushless Steel Gear Monster Torque Servo

About this part

High Voltage brushless Steel Gear Monster Torque Servo with Soft Start, 0.12sec / 833.2oz @ 8.4V The Savox SB-2280SGP High Voltage brushless Digital Servo combines leading edge technology with super high 12 bit (4096) resolution. "Plus" series servos feature Soft Start and Sanwa SSR compatibility.

Features

• Unique steel gear train.
• Capable of HV operation.
• Brushless motor for smooth operation and efficiency.
• Ideal for 1/8 buggies, crawlers, and large-scale aircraft.

Specifications

• Torque @ 6V40.0kg-cm/555.5oz-in Torque @ 7.4V50.0kg-cm/694.4oz-in Torque @ 8.4V60.0kg-cm/833.2oz-in Speed @ 6V0.17 sec/60 Speed @ 7.4V0.14 sec/60 Speed @ 8.4V0.12 sec/60 Dimensions L x W x H (mm): 40.3 x 20.2 x 38.7 Weight: 83g Technical

Specifications

• Operating Temperature: 14122F (-1050C) Running Current (no load): 180mA @6.0V, 200mA @7.4V, 220mA @8.4V Stall Current (at locked): 6000mA @6.0V, 7400mA @7.4V, 8400mA @8.4V Idle Current: 5mA @6.0V, 5mA @7.4V, 5mA @8.4V Wire length: 300 5mm Output Gear Spline: 25 Tooth Operating Travel: 100 (10002000second) Neutral Position: 1500second Pulse Width Range: 8002200second Maximum Travel: Appx 130 (9002100second) Refresh Rate: 333 Hz Motor Type: brushless
