91t 48p Steel Spur Gear Arrma 1:10 4x4

About this part

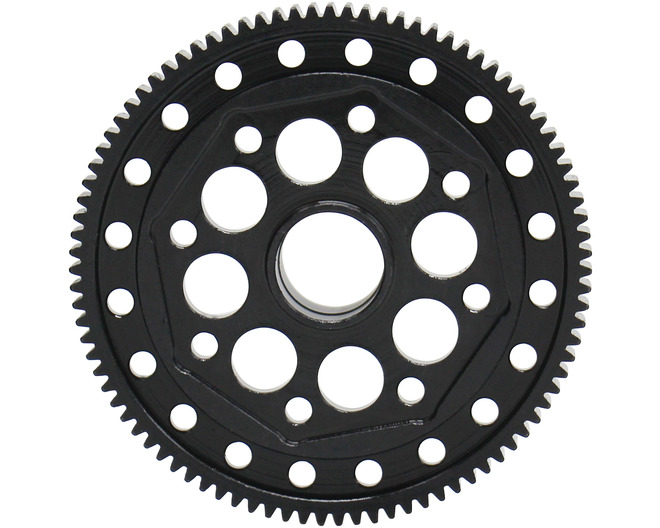

Hot Racing steel super duty Steel Spur Gear 91T 48P spur gear for 1/10 Arrma 4X4 brushed vehicles. See comments below for specific vehicle fit information.

Features

• Rugged Steel 48 pitch for total reliability when using high power brushless systems
• CNC machined and lightened hardened steel construction
• Replaces factory plastic gear
• Black oxide coating for durability and corrosion resistance
• Can uses factory slipper pads or Hot Racing ATF15H aluminum slipper pad(s)

You will receive

• One (1) 91T 48 pitch spur gear

Specifications

• Number of Teeth: 91
• Gear Pitch: 48 pitch
• Tooth Face width: 0.24 inch (6 mm)

Requirements

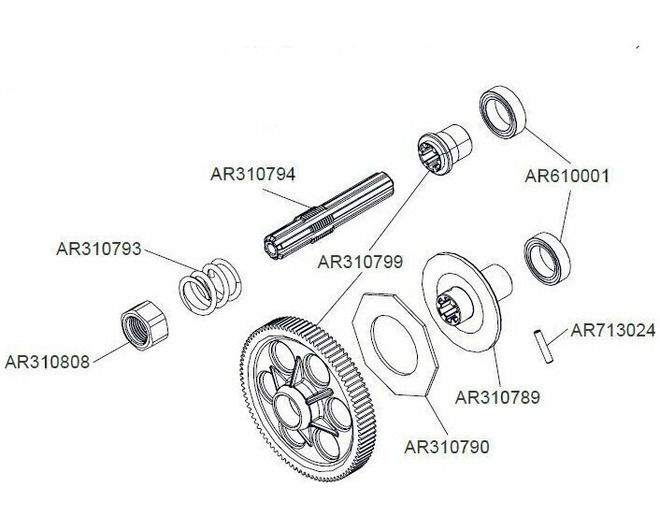

• Stock plastic center gear bushing from Arrma AR310799
• Only fits versions of vehicles with the 8-sided slipper pad. If your vehicle does not have this, you'll need to purchase the Arrma AR310790 slipper pad.

Comments

• Upgrade for factory plastic AR310799 91T, 48DP spur gear
• Known to fit the following Arrma vehicle part numbers. The vehicle part number can be found on Arrma's website, the literature that came with the vehicle, or on the vehicle box around the barcode. If a vehicle is marked below with the word "optional, " then the part may fit, but may require some modi

Fits
