True-Track Rear a-Arm Conversion Blue: Revo (Not for 2.0)

About this part

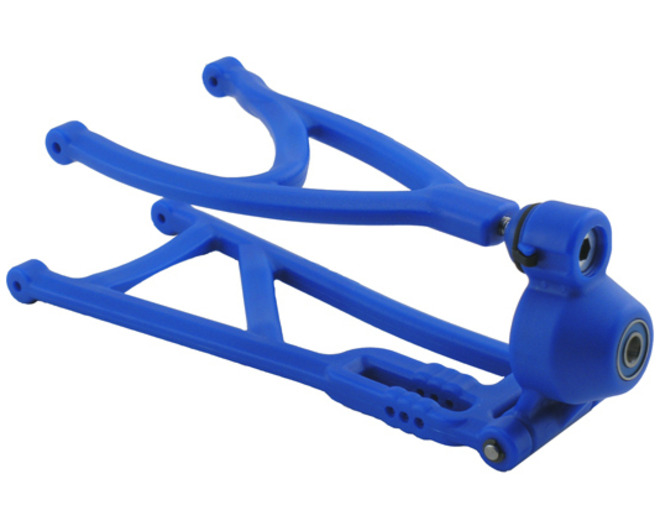

Fits both the Revo and e-Revo (does not fit the Revo 2.0) This is the RPM True-Track Rear A-Arm Conversion in Blue for all versions of the TRA Revo.

Features

• Eliminates stock rear toe links, locking in the rear toe angle at
• 1.5 per side for a total rear toe-in angle of 3
• Eliminates all rear bump steer for better rear end tracking
• Regardless of terrain
• Replaces lower pivot ball with a 4mm diameter hinge pin for constant
• Rear toe angle
• Retains stock upper pivot ball to allow camber adjustments
• Weighs a total of 1-1/8oz (32g) less than stock components

You will receive

• Two each Upper and Lower Rear A-Arms
• Two Axle Carriers
• Two 4mm Hinge Pins
• Four E-Clips
• Two 3x16mm Shock Mount Screws
• Two Aluminum Pivot Ball Set Screws
• Two Delrin Pivot Ball Bushing Cups
• Two 6x15mm Sealed Outer Bearings
• Two 12x21mm Sealed Inner Bearings
• Instruction sheet

Requirements

• Removing stock rear components

Comments

• This True-Track system is compatible with the following RPM
• Components;
• RPMC8237 Front Black A-Arms
• RPMC8238 Front Blue A-Arms
• RPMC8222 Black Front Upper and Lower Left A-Arms
• RPMC8585 RPM Axle Carriers/Steering Blocks
• Not compatible with the TRA #5356 Long Travel Rocker Set.

Fits
