Aluminum Steering Blocks w/ HD Bearings - Fazon Bigrock Nero

About this part

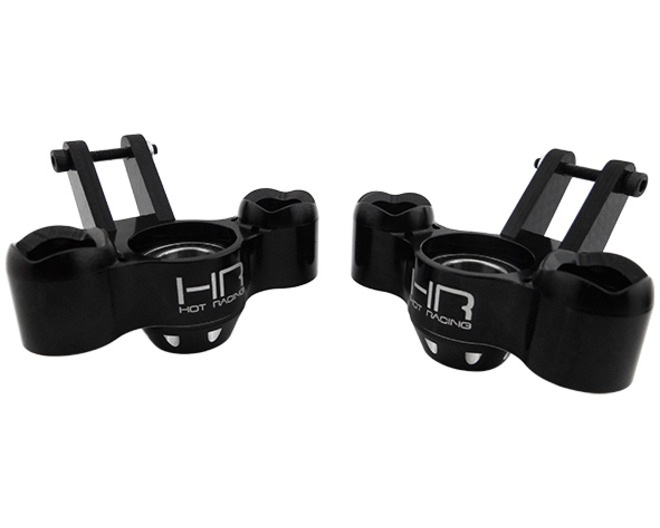

• Hot Racing heavy duty aluminum front steering blocks (i.
• E.

front axle carriers, steering knuckles) with carbon fiber steering arms for the 1/8 Arrma Big Rock BLX, Fazon BLX, and Nero BLX. See vehicle model compatibility in comments below.

Features

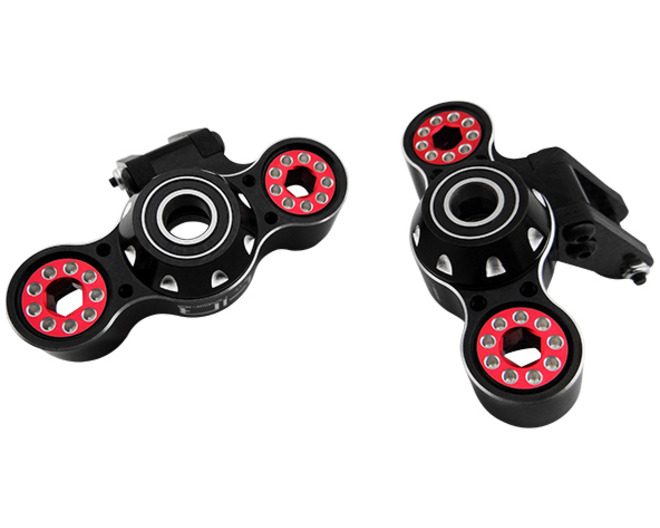

• Steering blocks: CNC machined aluminum, anodized black - 4mm carbon fiber steering arms with integrated nut for easy tie-rod installation - Hub nuts: CNC machined aluminum, anodized red with Delrin cups and o-ring position locks - Over-sized heavy duty inner bearings - Rubber sealed bearings

You will receive

• One (1) left front steering block with carbon fiber steering arms
• One (1) right front steering block with carbon fiber steering arms
• Four (4) aluminum hub nuts
• Two (2) 12x21x5mm rubber sealed inner bearings
• Two (2) 8x16x5mm rubber sealed outer bearings

Requirements

• 6mm hex wrench for hub nuts
• Installation

Specifications

• Weight: 53g per steering block - Inner bearings: 12x21x5mm (stock is 12x18x4mm) - Outer bearings: 8x16x5mm (stock is 8x16x5mm)

Comments

• Replaces Arrma AR330361 plastic steering blocks
• Replacement parts are Hot Racing: NRO2122N02 (aluminum hub nuts), RNRO21G (carbon fiber arms) - Known to fit the following Arrma v

Fits

Replaces stock part
