Metal Cv Splined Drive Shaf - Mini-XRT

About this part

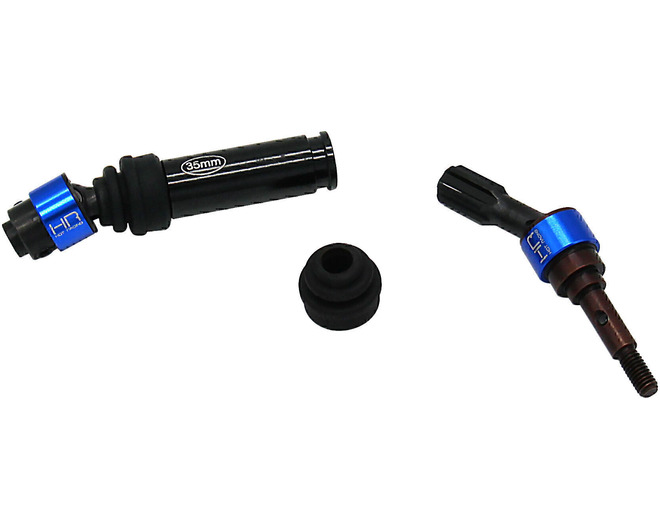

Hot Racing heavy duty splined star drive CVD axle kit for the front or rear of the XRT mini scale TRX or Mini Max with a wide kit

Features

• CNC machined #45 hardened carbon steel CVs, drive hub, male slider spline, and stub axle
• CNC machined aluminum slider tube
• Blue anodized aluminum pin capture rings to prevent movement
• Rubber dust cover boots
• Replaces factory front or rear driveshaft axles

You will receive

• Two (2) splined axle assemblies

Requirements

• Installation to the drive assembly
• Need to reuse the stock Drive pin and set screw Pin
• Recommended to maintain CV joint and shaft spline with grease
• Recommended to medium thread lock on screws threading into metal

Specifications

• Collapsed length, wheel pin to outdrive pin: 89mm
• Extended length, wheel pin to outdrive pin resulting in zero shaft engagement: 98mm
• Pinned set screw
• M4x2.5x11mm

Comments

• For replace TRA10798 Mini-TRX Front or rear
• Will need Full set MMX54W01, MMX55W01, MMX56W01 MMX57W01, and MMX288W06 . for Mini Maxx

Fits

Replaces stock part
