Aluminum Solid Axle Housing Kyosho Fo-Xx Mad Crusher Force

About this part

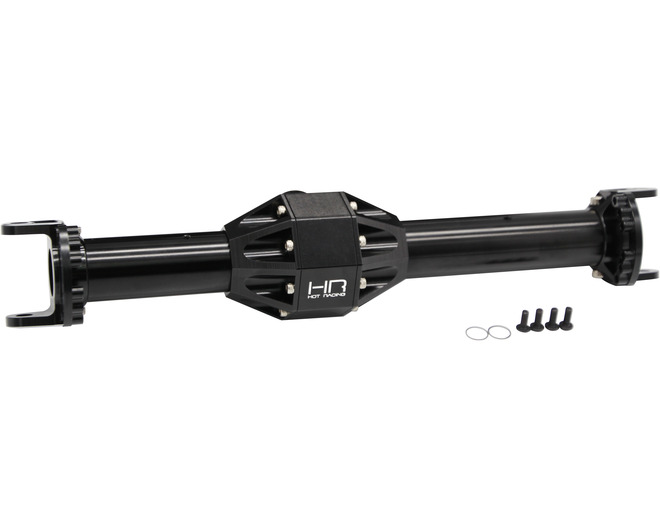

Hot Racing front or rear billet aluminum solid axle housing for the 1/8 Kyosho FO-XX, Mad Crusher, Mad Force, and Twin Force

Features

• Strong, beefy upgrade over stock plastic axle housing- Strong, 24mm diameter and 3mm thick axle tubes
• CNC machined billet aluminum housing, anodized black for protection and great looks
• Can be used on the front or rear with adjustable caster c-hubs

You will receive

• : Axle Housing - Four (4) M3x8mm button head cap screws for suspension radius arm attachement - Bearing shims

Requirements

• Installation per vehicle manual
• Two required to complete front and rear of vehicle
• Medium thread lock (blue threadlocking compound) on screws; thread lock not applied from factory

Specifications

• Total length: 263mm
• Weight: 245g

Comments

• : Replaces Kyosho stock part numbers MA004F/MA004R and MA002 - Believed to fit the following Kyosho vehicle numbers. Please check your vehicle's literature for the vehicle number.
• FO-XX VE: #30887, #34251
• FO-XX GP: #31228, #33151
• Mad Crusher VE: #34253
• Mad Crusher GP: #33152
• Mad Force Kruiser VE: #30885
• Mad Force Kruiser GP: #31226
• Mad Force Kruiser 2.0 VE: #30888
• Mad Force Kruiser 2.0 GP: #31229
• Twin Force: #30521
• Twin Force Spiri
