ESC Cooling Fan w/ Adjustable Carbon Fiber Base

About this part

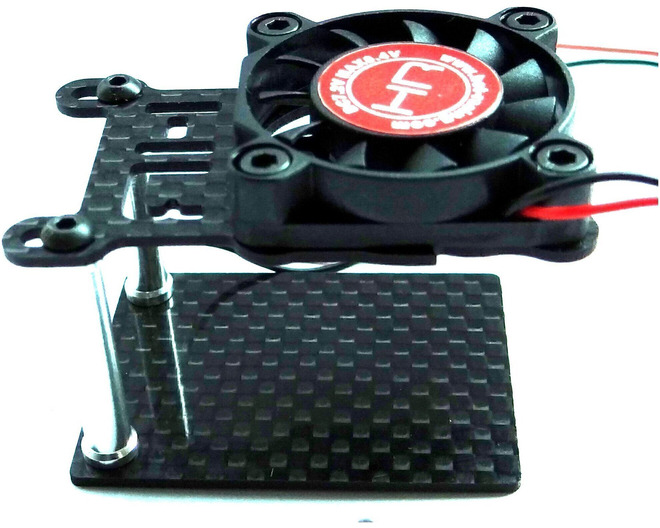

Hot Racing universal ESC cooling fan with adjustable carbon fiber base for most electronic speed controls

Features

• Keeps the ESC running cooler
• Adjustable carbon fiber base provides versatile mounting
• Carbon fiber construction is light weight and strong
• Aluminum standoffs
• Simple installation

You will receive

• One (1) cooling fan
• One (1) carbon fiber base with aluminum standoffs
• Four (4) 3mm aluminum spacers

Requirements

• Installation with servo tape
• Electrical hook up with 7.2-8.4V MAX DC power source
• Plug requires soldering or connection to a receiver port plug

Specifications

• Base size: 32x43x1mm - Fan size: 30x30x7.5mm - Fan mounting hole pattern: 24mm square - Input voltage: DC 7.2-8.4V MAX - Base standoff (post) height: 25mm

Comments

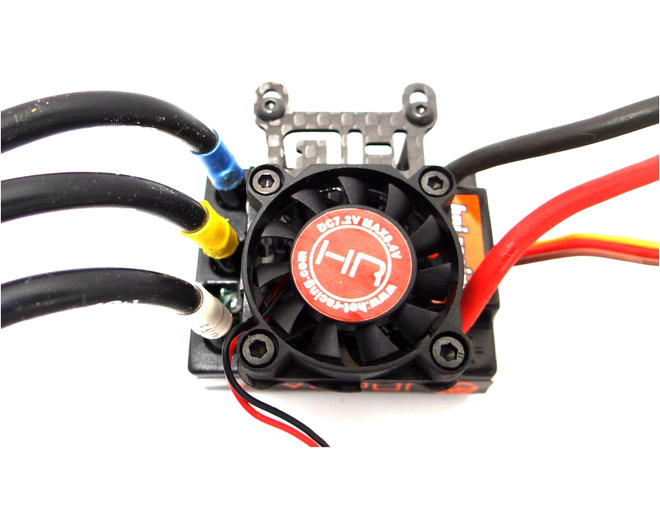

• Speed controller is not included and is shown for demonstration only

Fits
