Aluminum Servo Arm 23T: ECX 1:10 2WD 4WD

About this part

Hot Racing single arm servo arm for ECX 1/10 2WD and 1/10 4WD

Features

• Aluminum construction
• Anodized Blue
• For use with JR KO Airtronics and Sanwa brand servos with 23 tooth spline drive
• Two 3mm linkage hole

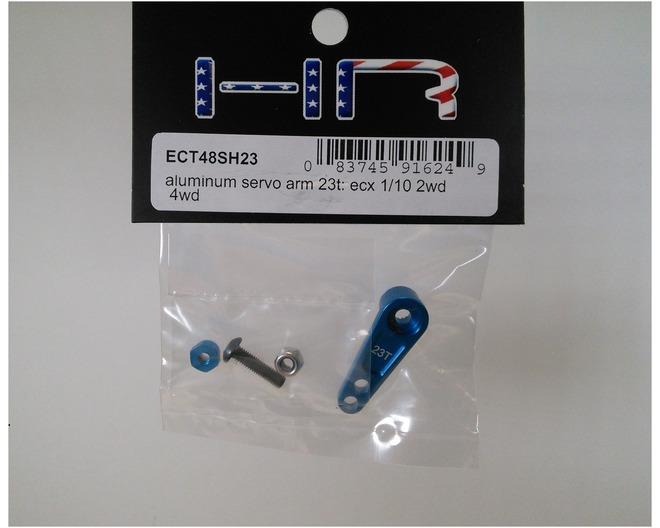

You will receive

• One (1) single arm servo(Blue)
• One 4-40 mini lock nut (blue) (for 2WD)
• One M3 x 12mm screw (for 4WD)
• One M3 Lock nut (Silver) (for 4WD)

Requirements

• 23 spline servo

Specifications

• Distance Hole A: 18mm
• Distance Hole B: 16mm
• Total Thickness: 7.0mm
• Material: 6061-T6 Aluminum
• Spline: 23T
• Arm Thickness: ~4mm - Total length: ~28mm
• Comment
• Replace part of ECX1028 or ECX 231013
• Use it in 4WD you will not have servo saver function

Fits

Replaces stock part
