Raw Steel 1.9 Beadlock 6-Lug Wagon Wheels 12mm Hex (4)

About this part

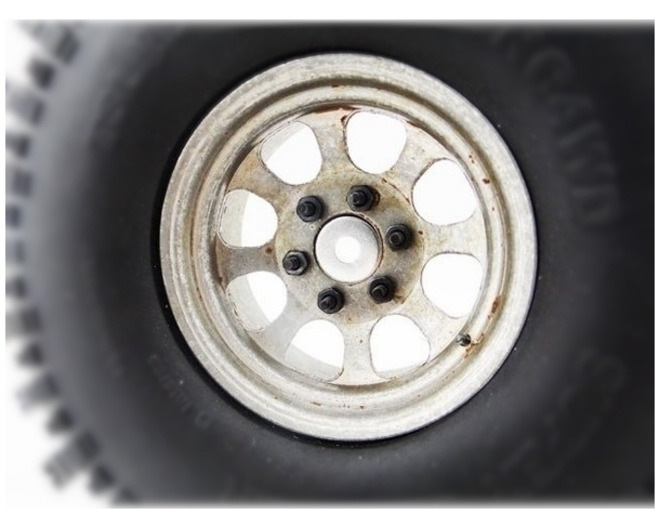

Hot Racing 1.9 6-lug steel wagon wheels in raw, uncoated, steel with 12mm hex hubs

Features

• Stamped steel wheel design
• Three-piece bead lock design
• Eliminates messy gluing
• Allows for switching of tires and/or foams without having to remove glue or buy new rims
• Heavy 66g wheels add and lower vehicle weight for greater traction and stability
• CNC machined 6061 aluminum 12mm hex hub
• Scale-looking valve stem detail
• Aluminum inner beadlock ring

You will receive

• Four (4) steel beadlock wheels

Requirements

• 1.9 tires and foams
• Installation
• 1.5mm hex wench
• 4mm nut driver or socket
• Medium thread lock for hub bolts
• Center hole is 4.3mm, for a M4 threaded axle. If the protruding axle is lager than that, the hub holes will need to be drilled out.

Specifications

• Hub: 12mm hex
• For tires: 1.9in
• Diameter of outer rim lip: 53.5mm
• Diameter of inside of rim: 47mm
• Weight: 66g/ea
• Width (outside bead to outside bead): 25mm
• Backspacing: 10.5mm
• Screws are M2x10mm

Comments

• For replacement hardware, see Hot Racing: BLWS201 (black M2x10mm), BLWS208 (chrome M2x10mm)
• Styles include, Hot Racing: BLW19H38 (white 5-lug 8-hole pin hub), BLW19HS01 (black 6-lug 8-hole 12mm hex hub), BLW19SS01 (black 6-Lug wagon 1
