Black Aluminum Rear Knuckle B5 B5m T5m

About this part

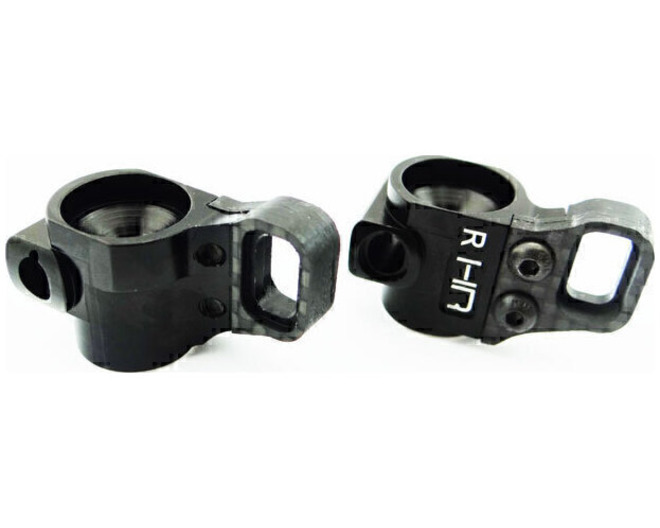

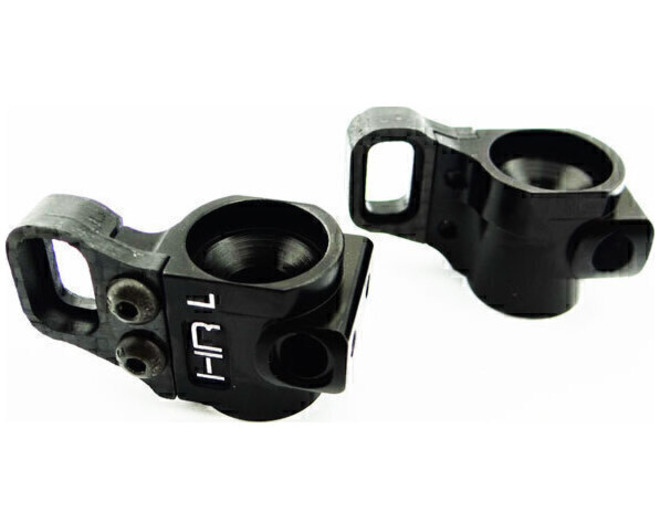

Hot Racing aluminum rear hubs with carbon fiber link mounts for Team Associated 5-series 1/10th scale vehicles, including the: RC10B5, RC10B5M, RC10B5M Factory Lite, RC10SC5M, RC10T5M, etc.

Features

• CNC machined aluminum, anodized black
• Carbon fiber link mounts
• Clearly marked "R" and "L" labels
• Two M3 threaded holes on the bottom of each hub accommodate setscrews to prevent toe insert from moving
• Replaces factory plastic components

You will receive

• Left and right aluminum rear hubs with carbon fiber link mounts

Requirements

• Recommended to use removable thread lock (blue threadlocking compound) on screws threading into metal
• Four (4) M3x3mm or M3x4mm setscrews to lock toe insert
• Reuses Team Associated stock vehicle parts: 25616 10x15x4mm bearings - 91476 6x13x5mm bearings - Rear hub inserts from 91414

Comments

• Replaces factory plastic Team Associated rear hubs 91414 or 91415
• Replaceable carbon fiber link mounts are Hot Racing RBFR22G01

Fits
